Laboratory tangential-flow processing

Tangential Flow Filtration for Labscale

Hollow-fiber and cassette formats for laboratory concentration, diafiltration, clarification, fractionation and scale-down process development.

Performance must be confirmed for the complete membrane, flow path, pump, holder, tubing and operating strategy

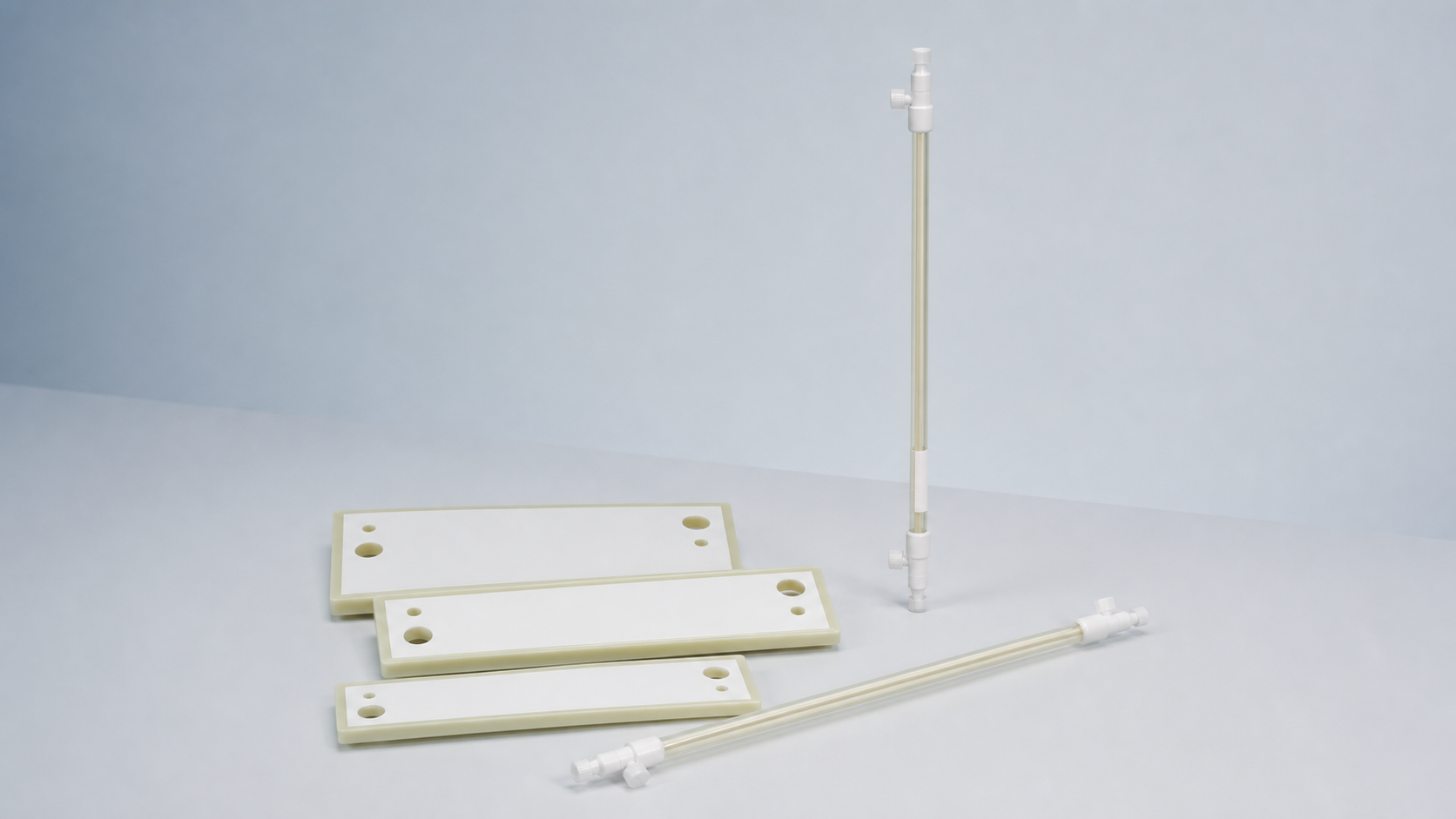

Laboratory tangential flow filtration hollow-fiber and cassette formats
Laboratory TFF portfolio Concentration · Diafiltration · Clarification · Scale-down
2 formats Hollow fiber and cassette
0.1-0.65 µm Hollow-fiber MF range
1-1000 kDa Cassette MWCO portfolio
300 mL-50 L Reference process-scale range

Process feed parallel to the membrane for repeatable UF and MF duty.

Tangential flow filtration recirculates feed parallel to the membrane surface while permeate passes through the membrane. Crossflow helps limit surface accumulation compared with dead-end filtration and supports repeated concentration and diafiltration steps in one fluid path.

Format 01 · Hollow fiber

Hollow-Fiber TFF

A straight-lumen flow path for low-shear clarification, microfiltration and ultrafiltration concentration.

  • Modified PES hollow-fiber media
  • Microfiltration and ultrafiltration options
  • Reference areas from 28 to 471 cm²

Reference process scale 300 mL-4 L

Format 02 · Flat-sheet cassette

Cassette TFF

Defined screens and flow channels for ultrafiltration, diafiltration and scalable laboratory process development.

  • RC or PES membrane options
  • Tight, coarse, open and custom screen designs
  • Reference areas from 100 cm² to 0.11 m²

Reference process scale 200 mL-50 L

Selection guide

Select the flow path around feed properties and scale-up intent.

Hollow fibers provide a straight flow path and are often selected for low-shear clarification or concentration. Flat-sheet cassettes provide defined screen and channel options for ultrafiltration and scale-down work. Selection should consider target size, viscosity, solids, shear sensitivity, minimum recirculation volume, membrane area, pump range, pressure monitoring and the intended scale-up platform.

MF / UF Separation-mode portfolio
2 formats Hollow fiber and cassette
01 Flow path Hollow fiber: straight lumen path for gentle handling. Cassette: defined flat-sheet channels and screen options. Fluid dynamics
02 Primary duty Hollow fiber: MF clarification or UF concentration with modified PES. Cassette: UF concentration and diafiltration with RC or PES. Process objective
03 Scale-up basis Scale hollow fibers by lumen, length, fiber count, area and shear; scale cassettes by media, MWCO, screen, area, flux and pressure. Platform transfer

Scalable concentration, diafiltration and clarification workflows.

Match membrane format, rating, area and operating conditions to the target molecule, feed properties and intended scale-up platform.

01

Biomolecule concentration

Protein, antibody, nucleic-acid, viral-vector and nanoparticle concentration.

02

Diafiltration and exchange

Diafiltration, desalting and formulation-buffer exchange.

03

Cell harvest and clarification

Cell harvest, clarification and removal of suspended material.

04

Macromolecule fractionation

Fractionation of macromolecules by pore size or MWCO.

05

Process development

Laboratory screening of membranes and operating conditions.

06

Scale-down studies

Scale-down studies supporting transfer to pilot or production systems.

Define the feed, separation objective, scale and system interface.

A complete RFQ should identify the target, membrane format, rating, area, hold-up, operating strategy and scale-up requirements for technical review.

01

Feed and target

Provide sample matrix, target, particle or molecular size, concentration and viscosity.

02

Process objective

State clarification, concentration factor, diafiltration volumes, fractionation or recovery target.

03

Scale and hold-up

Define feed volume, minimum recirculation volume, required area and residual-volume limit.

04

Membrane and channel

Select hollow fiber or cassette, media, pore size or MWCO, and screen or channel geometry.

05

System interface

Identify pump, pressure sensors, tubing, holder, reservoir and all connector requirements.

06

Operating strategy

Provide flow, pressure, temperature, shear, cleaning or single-use and scale-up expectations.

Configuration matrix

Compare hollow-fiber and cassette TFF configurations.

Configuration note. TFF performance depends on the complete membrane, flow path, pump, holder, tubing and operating strategy. Membrane area is not a stand-alone scale claim; confirm minimum working volume, pressure, shear and recovery with representative feed.

Hollow fiber Cassette

Available configurations

Product type Subcategory Media Pore size / MWCO Filtration area Process scale Connectors
Hollow Fiber TFF - Hollow Fiber Microfiltration Modified PES 0.1 / 0.2 / 0.45 / 0.65 µm 28 / 56 / 118 / 236 / 471 cm² 300 mL-4 L Female / Male Luer; 3/8 in. HB; 1/2 in., 1-1/2 in. or 2 in. TC
TFF - Hollow Fiber Ultrafiltration Modified PES 50 / 100 / 300 / 500 / 750 kDa 28 / 56 / 118 / 236 / 471 cm² 300 mL-4 L Female / Male Luer; 3/8 in. HB; 1/2 in., 1-1/2 in. or 2 in. TC
Cassette Tight Screen RC / PES 1 / 3 / 5 / 8 / 10 / 30 / 50 / 100 / 300 / 500 / 1000 kDa 100 / 200 cm² / 0.11 m² 200-2,000 mL / 5-50 L Compatible cassette holder / manifold
Coarse Screen RC / PES 1 / 3 / 5 / 8 / 10 / 30 / 50 / 100 / 300 / 500 / 1000 kDa 100 / 200 cm² / 0.11 m² 200-2,000 mL / 5-50 L Compatible cassette holder / manifold
Open / High-Viscosity Screen RC / PES 1 / 3 / 5 / 8 / 10 / 30 / 50 / 100 / 300 / 500 / 1000 kDa 100 / 200 cm² / 0.11 m² 200-2,000 mL / 5-50 L Compatible cassette holder / manifold
Suspended / Open Channel RC / PES 1 / 3 / 5 / 8 / 10 / 30 / 50 / 100 / 300 / 500 / 1000 kDa 100 / 200 cm² / 0.11 m² 200-2,000 mL / 5-50 L Compatible cassette holder / manifold
Custom Screen RC / PES 1 / 3 / 5 / 8 / 10 / 30 / 50 / 100 / 300 / 500 / 1000 kDa Configuration-dependent Configuration-dependent Custom holder / manifold interface

Selection guide

Selection factor Hollow-fiber starting point Cassette starting point
Flow path Straight lumen path; useful where gentle handling and low channel complexity are priorities Defined flat-sheet channels and screen options for controlled crossflow
Primary duty Microfiltration clarification or UF concentration with modified PES UF concentration and diafiltration with RC or PES
Scale-up basis Fiber lumen, length, number of fibers, area and shear rate Membrane chemistry, MWCO, screen type, area, flux and pressure

From laboratory requirement to approved configuration

Next step. Start with the sample and analytical or separation objective, then define retention, chemistry, volume, equipment interface and documentation. Screen representative samples before approving the final product code.

A practical selection sequence

Step Decision Output
1 Define sample matrix, target species, solids and process objective User requirement summary
2 Select device family, membrane or depth media and rating Candidate configuration
3 Confirm volume, area, hold-up, pressure, rotor or flow-path limits Equipment-fit review
4 Test recovery, throughput, compatibility and analytical background Qualified operating window
5 Approve packaging, sterility, documentation and acceptance criteria Release for quotation and supply

Documentation and quality expectations

Depending on product and configuration, the documentation package may include lot identification, certificate of quality or conformity, material information, nominal physical properties, sterilization status, integrity or retention data, operating limits and packaging information. Only claims contained in approved supplier documentation and confirmed for the selected configuration should be transferred to a customer specification.

Prepare the right configuration for your customer project.

Confirm the feed, target, process objective, format, membrane, pore size or MWCO, area, hold-up, pump, pressure monitoring, connections and scale-up expectations before submitting the final RFQ.
